Ultimate® Low Output

Technical information

Download the technical information you need to easily specify and install the Ultimate® Low Output heating cable.



Download technical details

Technical data

All the technical information you'll ever need about ThermoSphere Membrane and Cable.

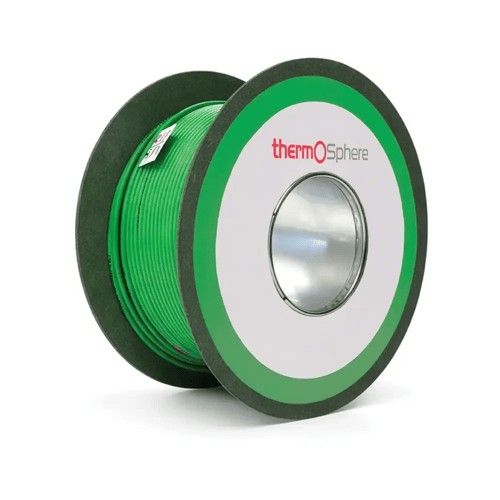

ThermoSphere Ultimate Low Output reel
Voltage
230V 50Hz
Output
57W/m2 or 85W/m2
Total thickness
5.5mm
Cable Length
12 - 200m
Protection rating
IP68
Membrane material
Polypropylene
Cable insulation
FEP and HR-PVC
Robinson test rating
Extra heavy use
Recommended max temp
27oC (limited by controls)
Warranty
Lifetime

Technical downloads

Installation guide

Installation Instructions



 Ultimate Installation (PDF)

Data Sheet icon

Data Sheet



Low Output Data Sheet (PDF)
