Heat & protect hard floors easily

ThermoSphere's Membrane Mat is a heating and decoupling mat for tile and stone floors. It's the perfect fit for ThermoSphere Ultimate heating cable too. So, you can have the best of both worlds.

Available from £13.98 Ex VAT.

Where to buy

Heating and decoupling in one

There are two key components to the ideal electric underfloor heating for tile or stone floors. The first is the unique ThermoSphere Ultimate heating cable and the second is the Membrane Mat.  It's an easy way to create warm floors and comfortable rooms, while protecting tile or stone floors from cracking and delamination. Just like our other electric underfloor heating systems, it's backed by a comprehensive lifetime warranty when the installation is registered.

Ultimate Membrane mat sheet

Ultimate Cable Reel

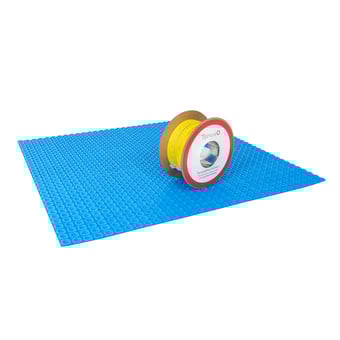

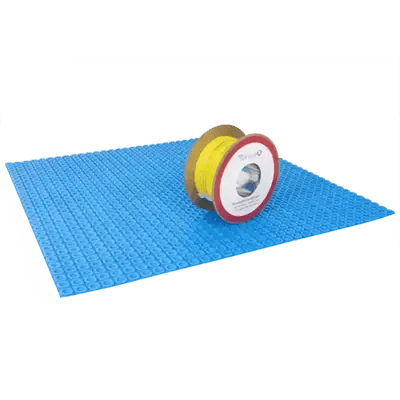

Ultimate Heating Cable and Membrane mat

Save time with self-adhesive

There's no need to buy extra tile adhesive, if you choose the self-adhesive option, just stick it straight onto clean plywood or OSB sub floors. Choosing the self-adhesive option also saves 3mm height within the floor build up.

Ultimate protection for tile and stone floors

The decoupling, waterproofing and load bearing properties of this Membrane Mat help to protect hard floor finishes.

Variable mode icon

Variable spacing

The stud design allows you to choose between two cable layouts to achieve your ideal heat output.

Thumbs up icon

There's two options

Decide what is best for your floor heating project. Either a fleece-backed or a self-adhesive mat.

Protection icon

Better protection

Decoupling properties neutralise lateral movement in tiled floors and minimise the risk of cracking.

Floor finish & low profile icon

Minimal height

If you are looking to minimise floor height, the Membrane Mat is only 5.5mm thick.

Reduce risk by combining ThermoSphere Ultimate with the Membrane Mat

Using Ultimate means there's no bulky hot/cold joint that needs cutting into the floor. This transforms installation into a one-step process, making it faster and easier while significantly reducing any chance of accidently damaging the cold tail joint during installation. No cutting also means the Membrane Mat's waterproofing layer stays intact.

Discover more about ThermoSphere Ultimate

Ideal for wet room projects

The waterproofing properties of the Membrane Mat makes it the ideal for use in wet room projects. Combining it with the ThermoSphere Ultimate electric heating cable means you'll have an IP68 rated floor heating system that can simply be tanked to create a luxurious feel to wet rooms.


Ultimate System

Choosing the right heating output

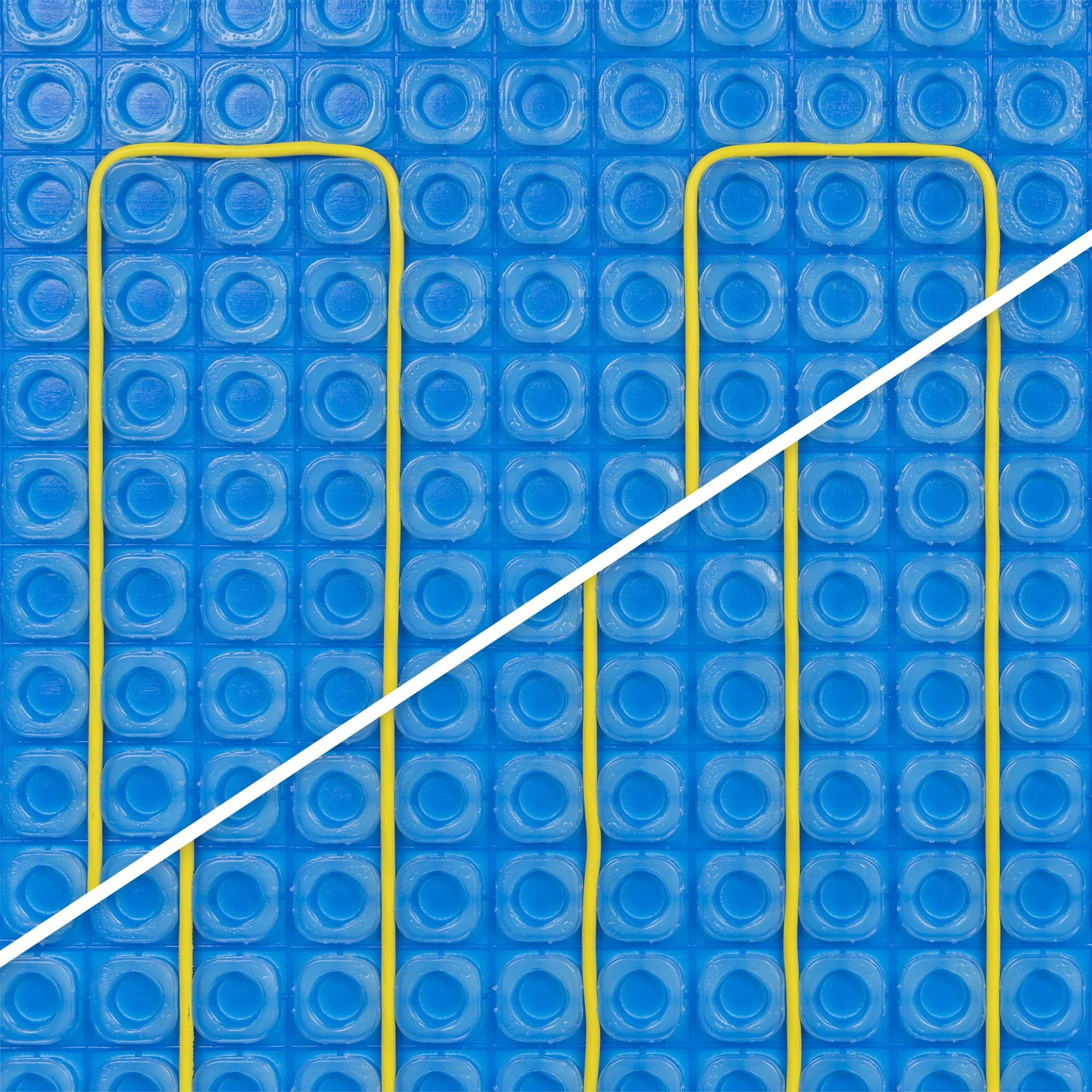

Thanks to the stud design of the Membrane Mat, you can choose between two different outputs and you do this by changing the spacing between the cable. Using a two-stud spacing for an output of 195W/m2 (ideal for wet rooms) and a three-stud spacing for an output of 130W/m2 (great for well-insulated buildings).


Ultimate underfloor heating variable heating outputs

Control with ease

Maximise the efficiency of your electric underfloor heating system by choosing the thermostat that suits your lifestyle. If you want to control it via an app, then SmartHome or the Bluetooth Programmable Thermostat might just be for you.

Explore the thermostat range

Electric underfloor heating thermostat control app

Your Membrane Mat questions answered

If you have a question that needs an answer, our comprehensive FAQs page is packed full of them. However, we know that some questions are more complex than others so our team are always available to help.


Contact one of the team
