Technical information

Download the technical information you need to easily specify and install the T-MO thermostat.



Download technical details

Technical data

T-MO thermostat

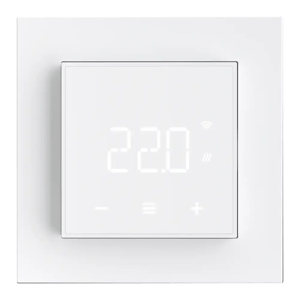

T-MO thermostat - White front view

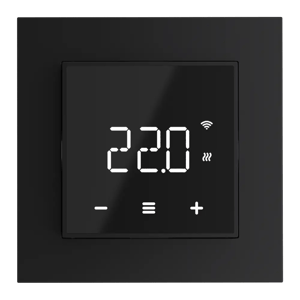

T-MO thermostat - Black front view


Voltage
230VAC 50Hz
Maximum Load
16A (3600W)
Connectivity
Wi-Fi 2.4GHz and BLE
Temperature range
5 - 40°C
Size
W 84 x H 84 x D 18mm
Protection rating
IP21
Mounting
45mm deep back box
Temperature sensors
Built in ambient and 2x
external NTC10K floor sensors
Compatible sensors
NTC 6.8, 10 (default), 12, 15, 22,
33, 47 and 100kΩ @ 25°C
Approvals
UKCA, CE, PSTI
Warranty
5 years

Technical downloads

Installation guide

Quick Guide



T-MO Quick Guide (PDF)

Installation guide

Installation Instructons



T-MO Installation (PDF)

Data Sheet icon

Data Sheets



T-MO White (PDF)

T-MO Black (PDF)

The key benefits for your customer

Remote access: We'll setup the heating schedule, so they don't have to.
ZeroXTM: Made with the latest technology, giving products longer life and warranty protection.
Multiple T-MO's: Multiple T-MOs can work together as linked temperature sensors and switches.
Relay mode: Control electric towel rails with relay mode.
Peace of mind: 5-year warranty when installed and registered online.
