Micro Electric Boiler

Compact and easy to install

The compact design of the Micro Electric Boiler means that it can be installed easily in the smallest of spaces.


Watch the installation guide

Complete installation guide

Ready to install the Micro Electric Boiler? This installation video takes you through the whole installation process, including commissioning the system for the first time.

Key installation steps

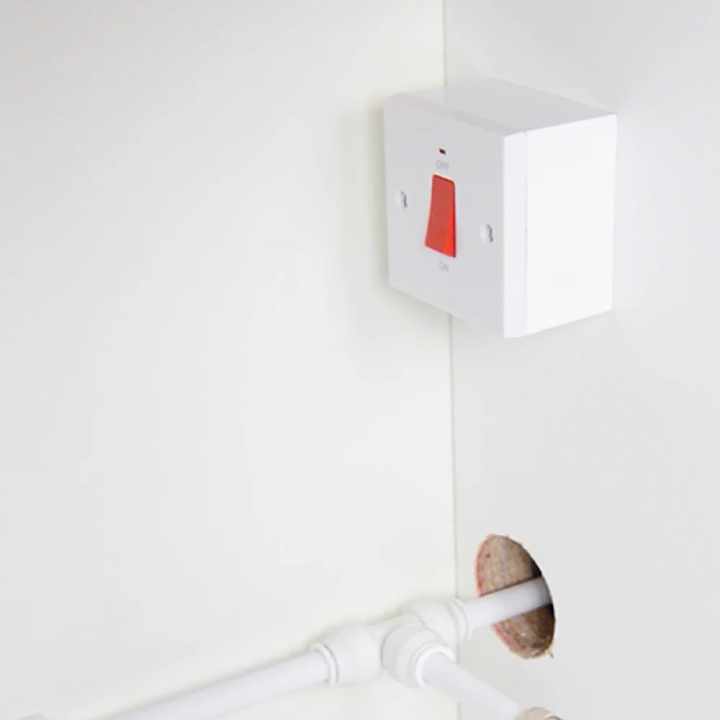

MEB Electrical connections

1. Install power supply

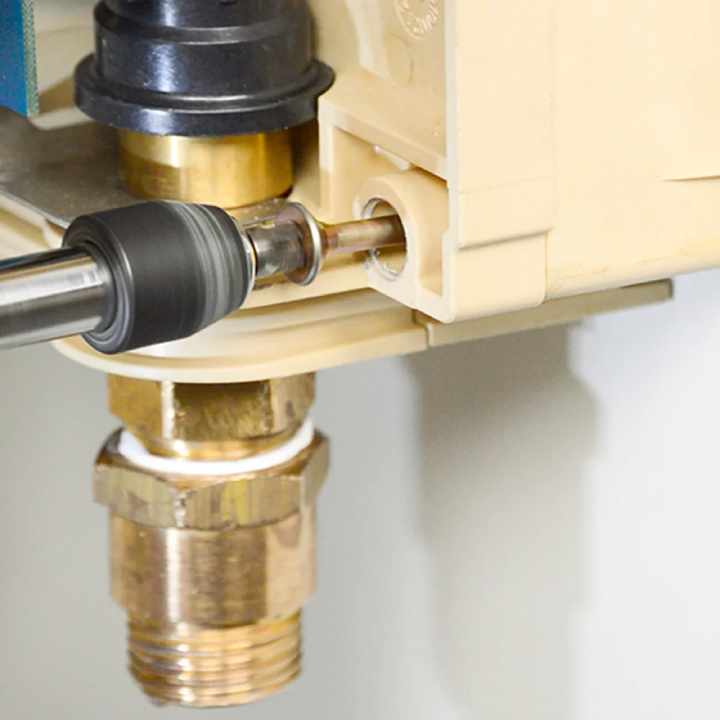

MEB Fixing

2. Mark and fix to the wall

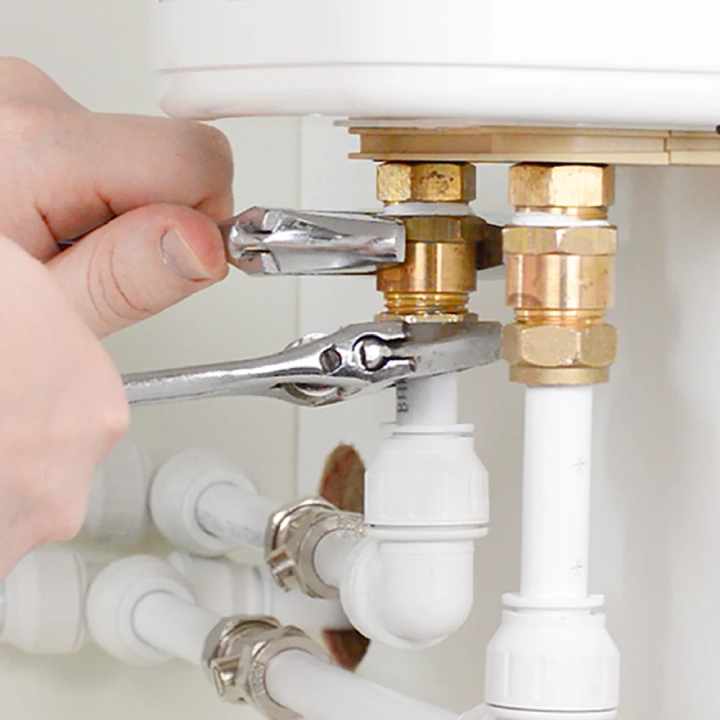

MEB Plumbing

3. Connect water feeds

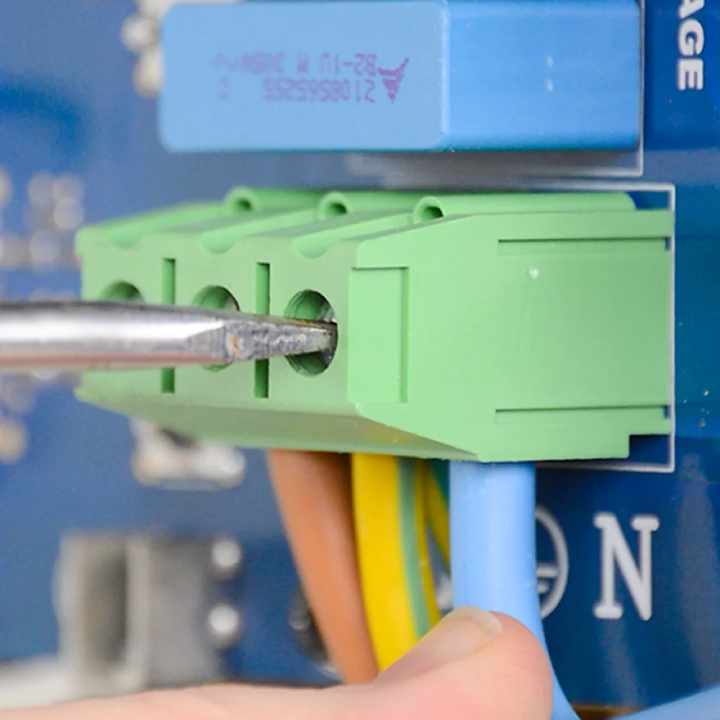

MEB Wiring

4. Wire up

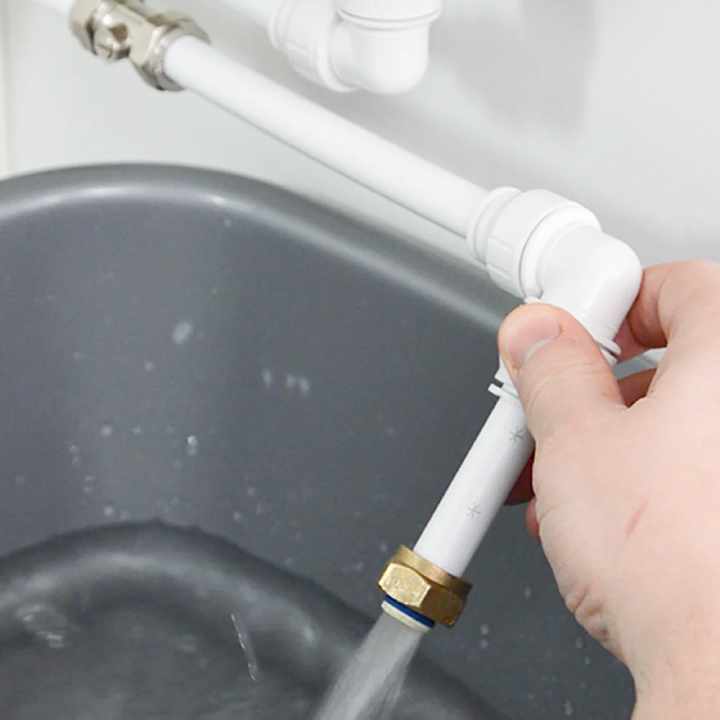

MEB Flush the pipes and system

5. Flush and prime

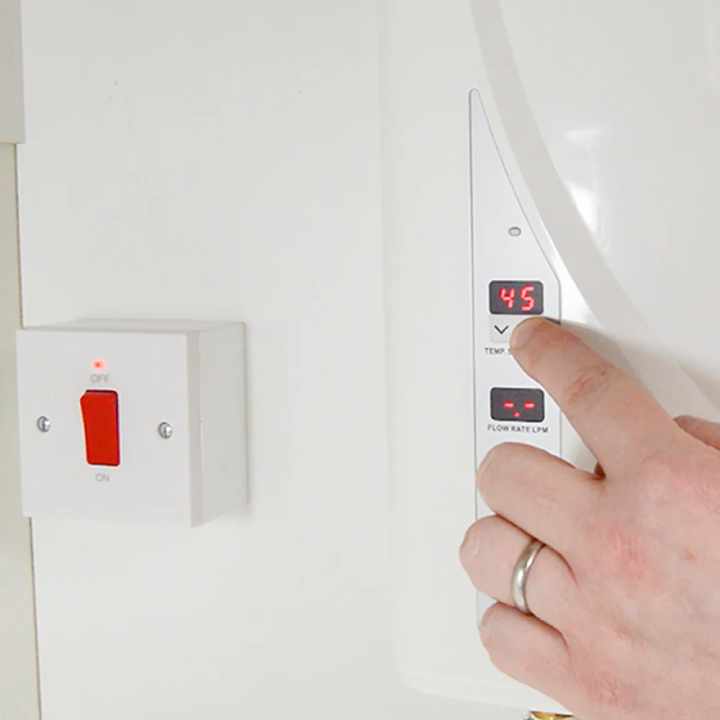

MEB Temperature setting

6. Set temperature and enjoy!

Is one enough?

A single Micro Electric Boiler can achieve flow rates of up to 5.6 litres per minute at a 25°C temperature rise. If that’s not enough you can install 2 units in tandem to achieve up to 11 litres per minute.

Data Sheet (PDF)


Domestic hot water systems

On demand domestic hot water such as kitchen taps and bathrooms, with temperature limiting creating safe environments. Such as care homes, where a limit of 43°C is set for hot water temperatures for the safety of residents.



Solar thermal and heat pumps

A 100% efficient ‘top up’ for solar thermal and heat pump systems, allowing the heat pump to be set to run at optimum efficiency.

Technical downloads


Wet underfloor heating systems

Providing hot water, at the exact temperature needed, for wet underfloor heating systems – no mixing required! A perfect fit for any type of residential and commercial project where space is at a premium.



Our 3 top installation tips


Electrical supply

Depending on which output you choose you will need to provide a dedicated electrical supply of between 20 - 40amps. You'll also need to run suitably sized cables to handle the load and install an RCBO to protect the circuit.


Water pressure

The incoming cold water supply must be protected by a 5 BAR pressure limiting valve and a shutoff valve. There's no need to install an expansion vessel.


Fixing points

Make sure you use the existing fixing points at the four corners of the mounting boss on the Micro Electric Boiler. Do not drill any extra holes as this will void the warranty!

Have an installation question?

If you have a question that needs an answer, our comprehensive FAQs page is packed full of them. However, we know that some questions are more complex than others so our team are always available to help.


Contact one of the team
